EXPOCITY

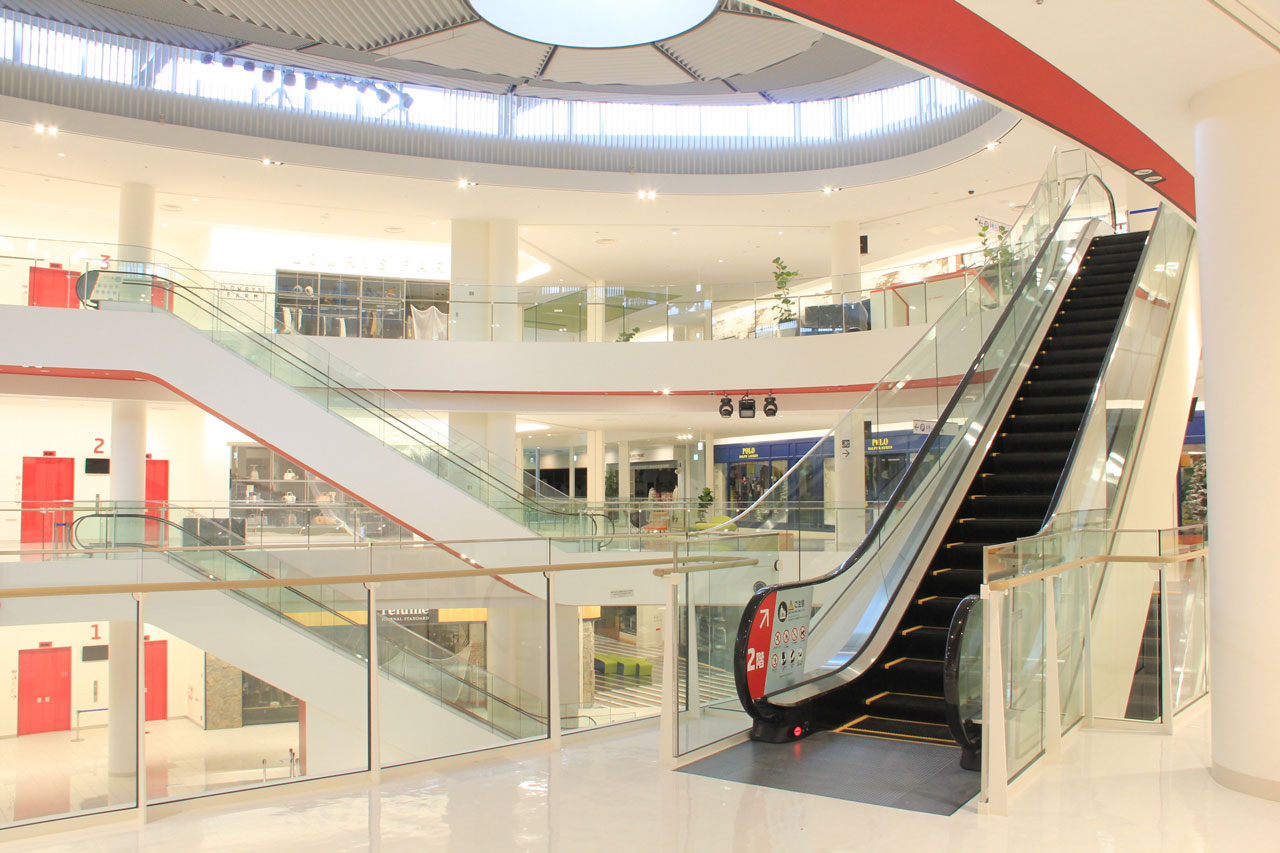

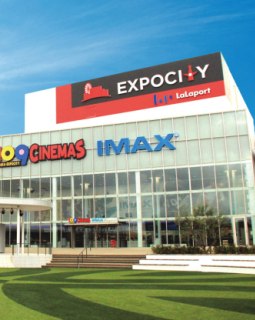

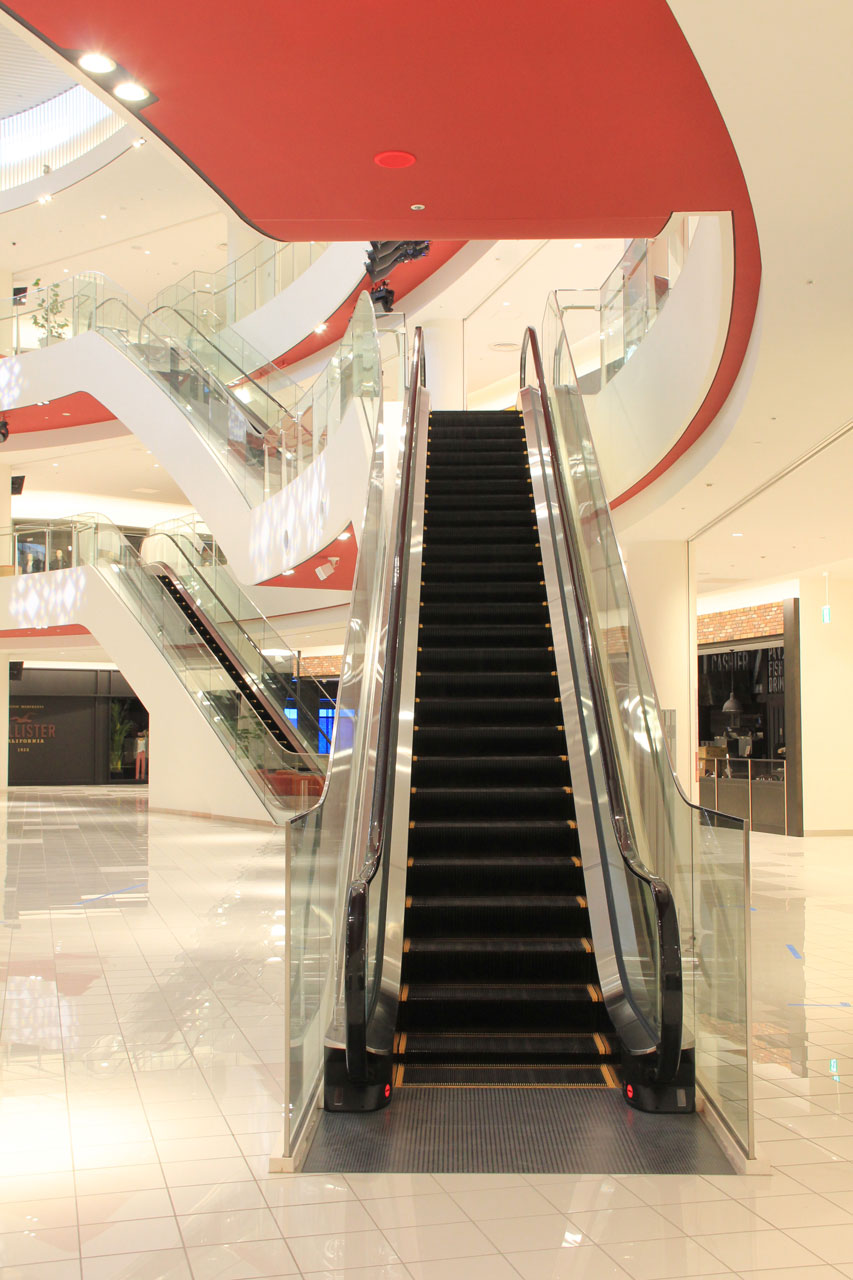

EXPOCITY is a large-scale complex in Suita City, Osaka. It was built on the vacant site of Expo ’70 Commemorative Park. The core building of EXPOCITY is a commercial facility. Adjacent to this, a museum run by Osaka Aquarium Kaiyukan, an English educational institute, a multi-theater cinema complex, various retail shops, etc. were built. In EXPOCITY, 43 Fujitec elevators and 38 Fujitec escalators are operating in order to serve many daily visitors. Our escalators surround the soaring atrium lobby located at the center of the commercial facility.

  • Elevator
  • Escalator
  • Commercial facility
  • Public facility
  • Japan
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Balustrade with light
  • Step:1000mm
  • 2010s
Building name
EXPOCITY
Address
Osaka
Client
Mitsui Fudosan Co., Ltd.
Design and supervision
Takenaka Corporation ・ Takenaka Civil Engineering & Construction Co., Ltd. JV
Construction
Takenaka Corporation ・ Takenaka Civil Engineering & Construction Co., Ltd. JV
Completion
2015

Specifications

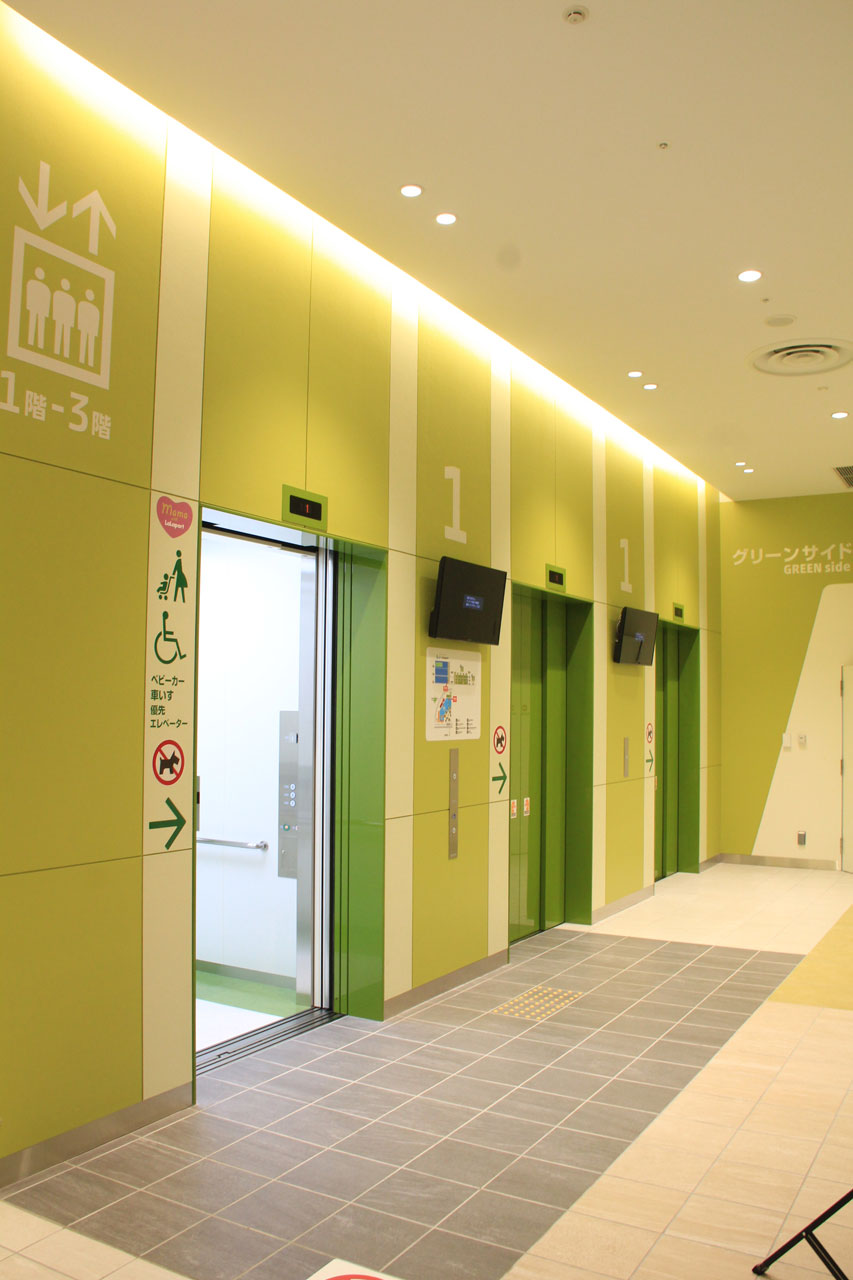

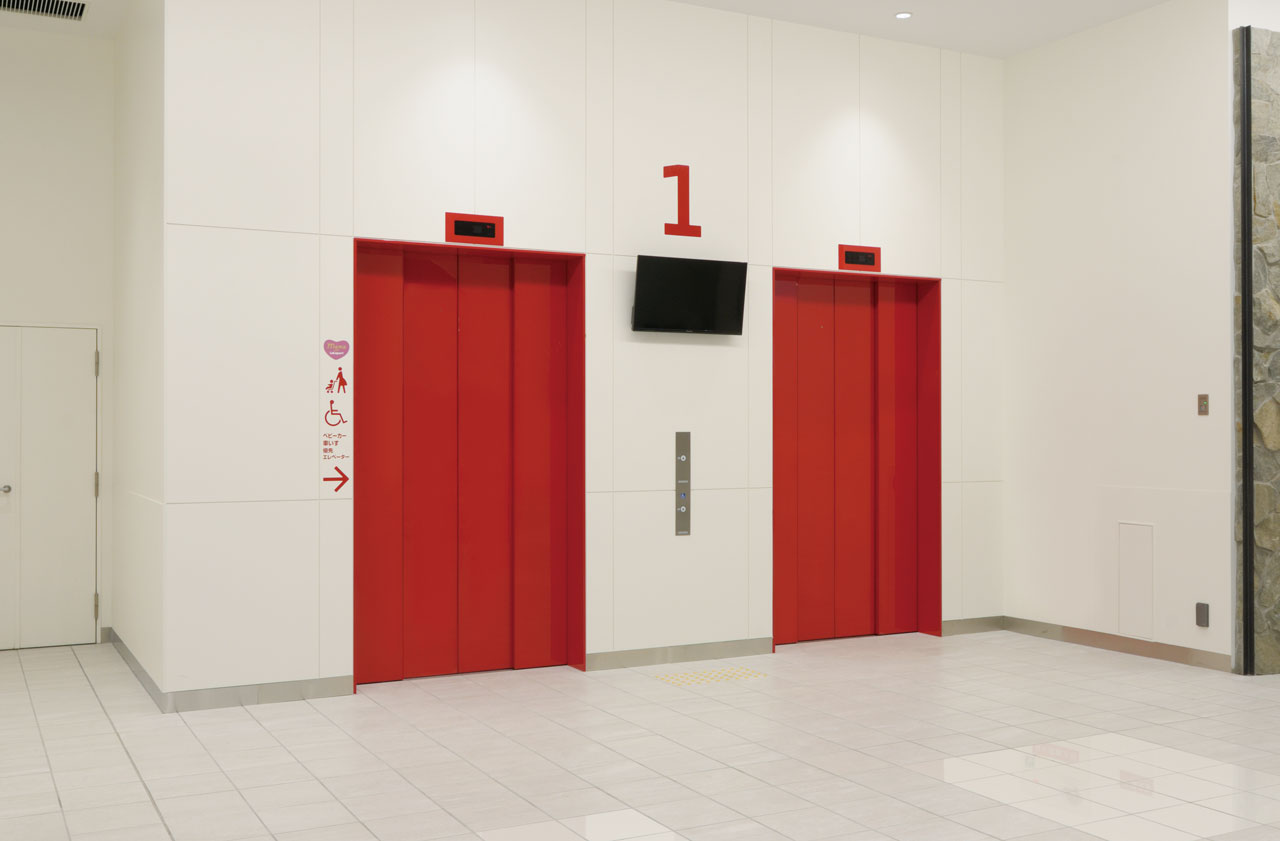

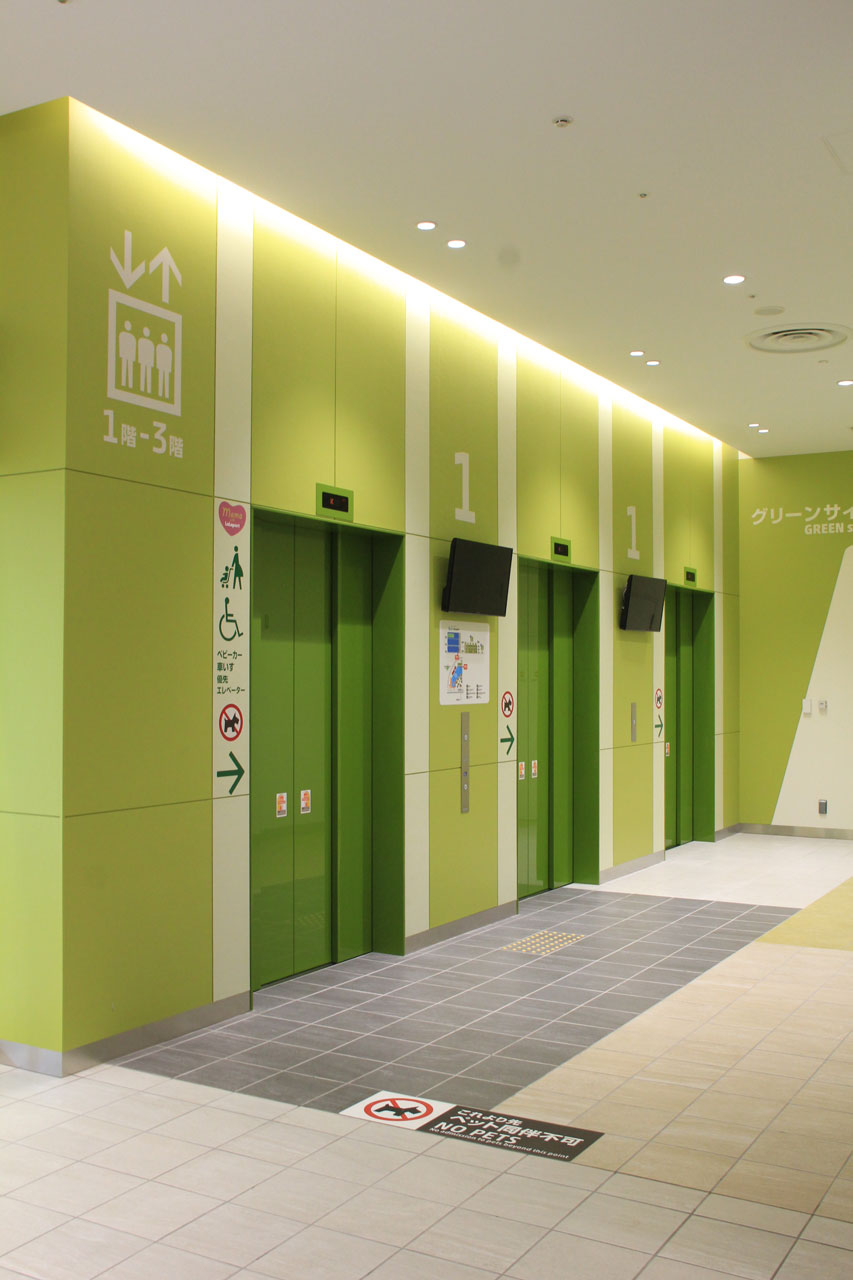

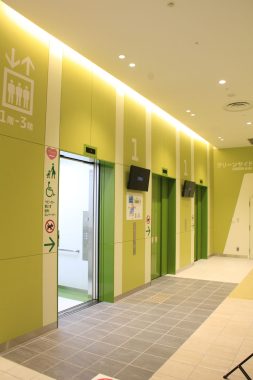

Elevator Delivery total number 43
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
Order XIOR Passenger 2000 30 90 3 4
Order XIOR Passenger 2000 30 90 5 3
Order XIOR Passenger 2000 30 90 3 3
Order XIOR Passenger 1600 24 90 3 2
Order XIOR Service 1600 24 60 4 5
Order XIOR Service 1600 24 60 3 4
Order XIOR Freight 1500 - 60 4 1
Order XIOR Freight 1500 - 60 5 1
Order XIOR Freight 1500 - 60 3 1
Order XIOR Service 1600 24 60 3 1
Order XIOR Passenger 1600 24 60 3 3
Order XIOR Passenger 2000 30 60 2 1
Order XIOR Passenger 1600 24 45 3 1
Order XIOR Service 2000 30 45 3 1
XIOR Passenger 1000 15 60 4 9
XIOR Passenger 750 11 60 2 1
XIOR Passenger 750 11 45 2 2

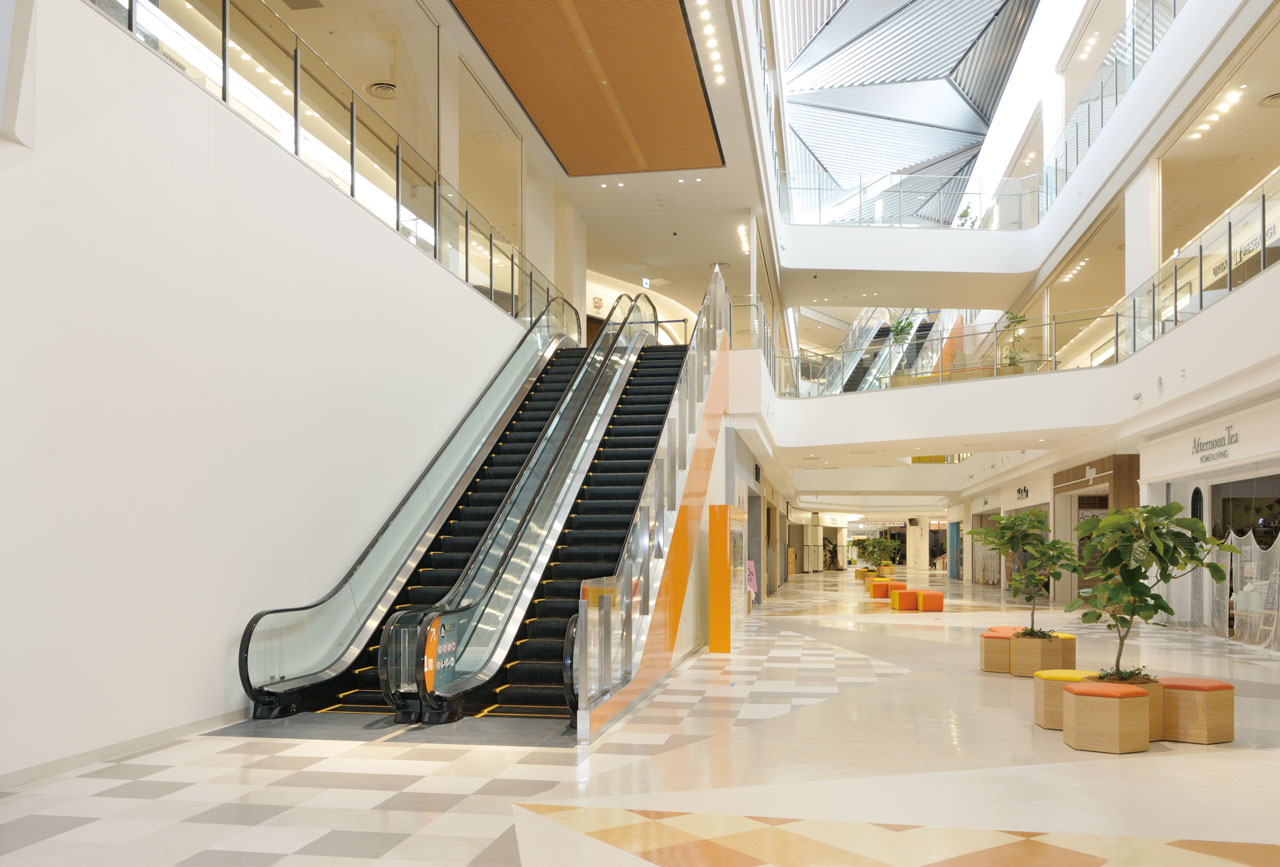

Escalator Delivery total number 38
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS-NX S 1000 5200 35 2
GS-NX F 1000 3455 30 2
GS-NX F 1000 3470 30 2
GS-NX F 1000 3970 30 2
GS-NX F 1000 4025 30 2
GS-NX S 1000 5250 30 28
