Shanghai iapm

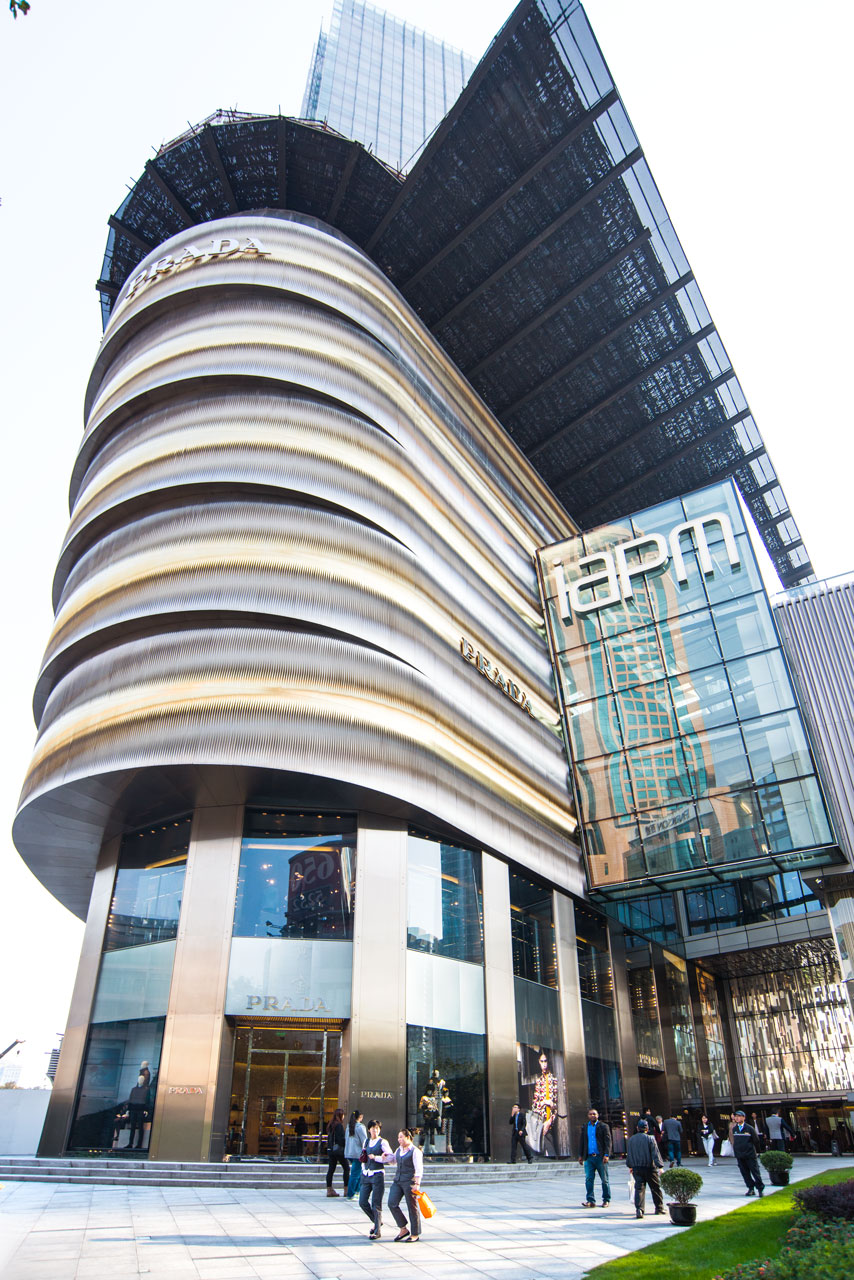

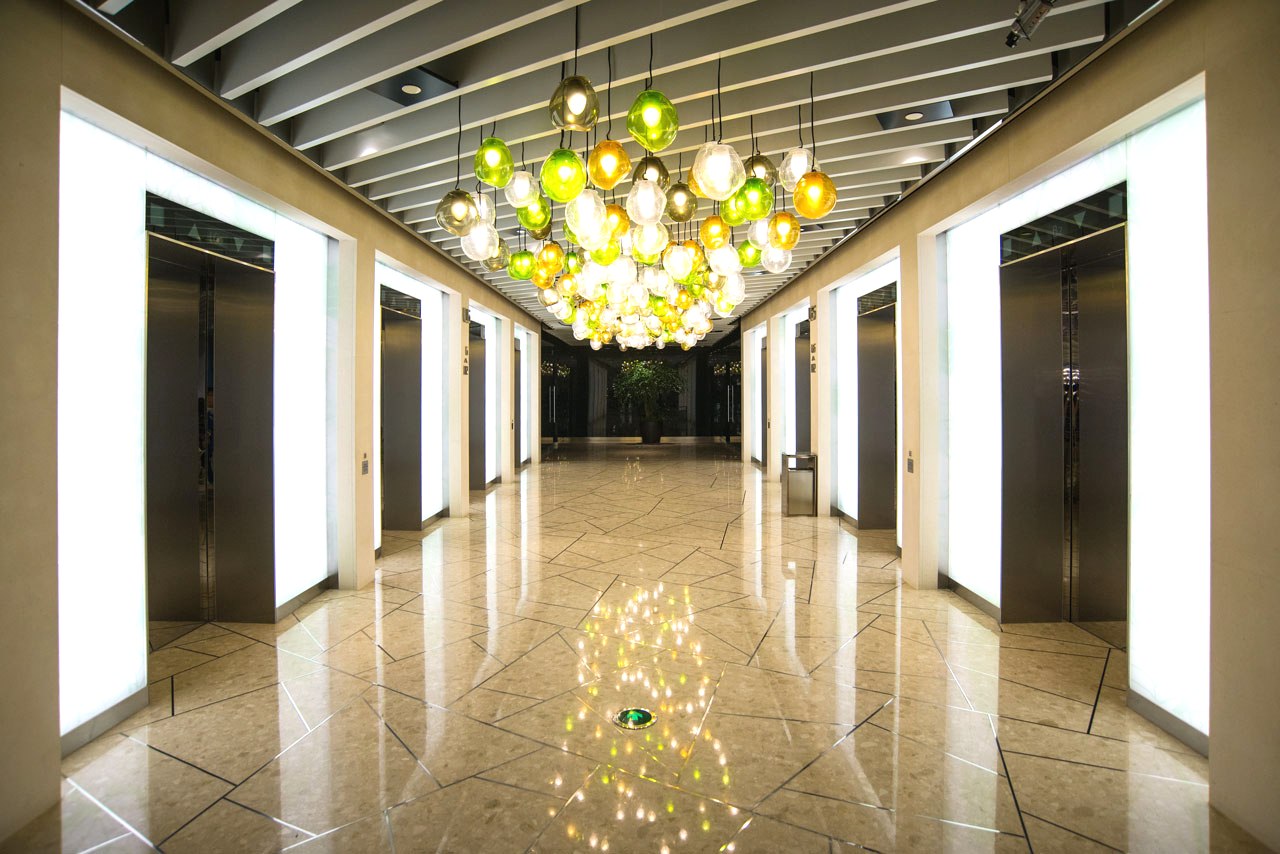

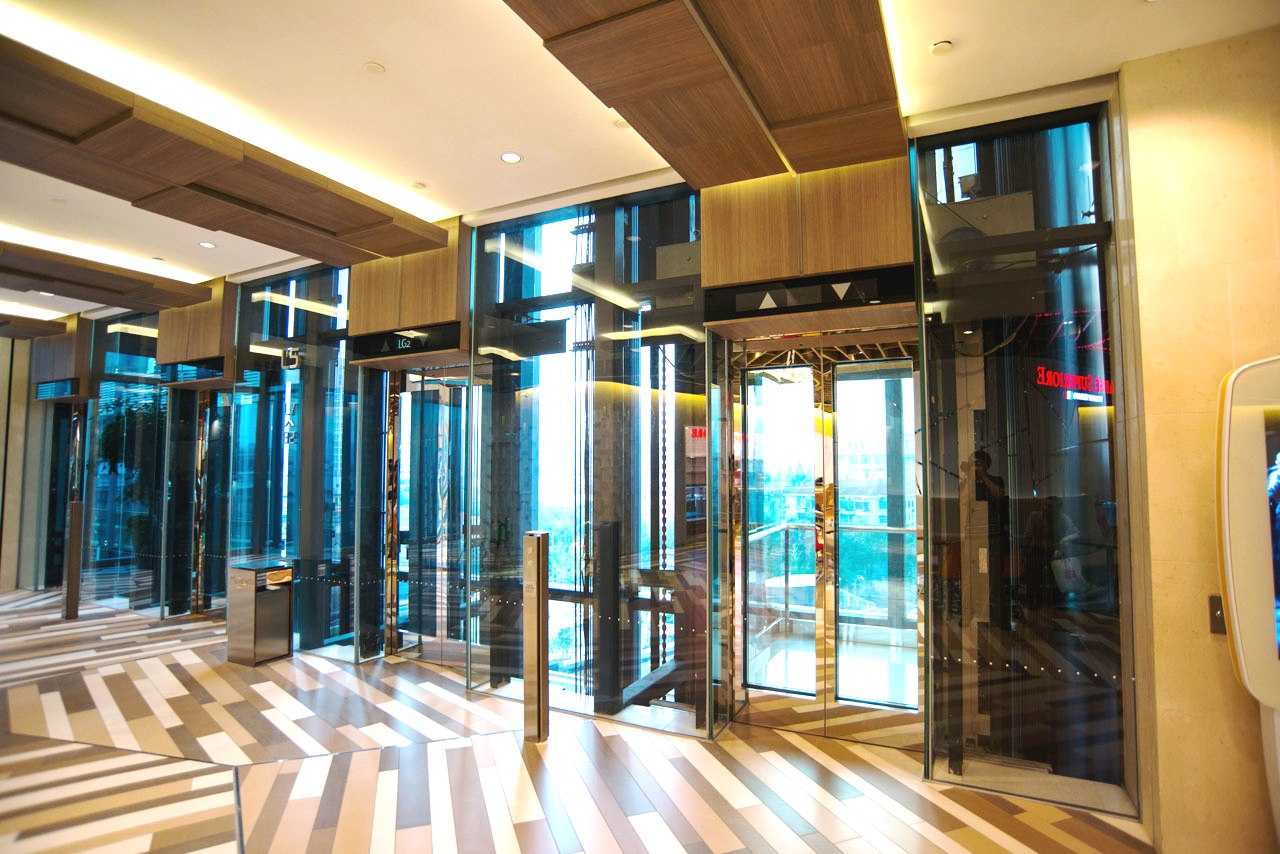

The Shanghai iapm building located in downtown Shanghai is a large-scale complex composed of office space and a shopping mall. In total, 89 Fujitec elevators and escalators were installed in this large complex. High craftsmanship skills are reflected in the elevator fixtures, which match the building's interior regal design.

  • Elevator
  • Escalator
  • Office
  • Commercial facility
  • Asia
  • Observation
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • Balustrade with light
  • Step:1000mm
  • Rise:over 8000mm
  • 2010s
Building name
Shanghai iapm
Address
Shanghai, China
Client
Sun Hung Kai Properties
Design and supervision
Shanghai Construction Group
Construction
Shanghai Wandu International Building Co. Ltd./Shanghai Huanmao Plaza Real Estate Co. Ltd.
Completion
2013

Specifications

Elevator Delivery total number 37
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
GLVF-H Passenger 900 12 150 19 4
GLVF-Ⅱ Passenger 900 12 150 20 2
REVITA Passenger 1600 21 90 11 4
REVITA Service 1800 24 60 3 1
REVITA Passenger 1350 18 105 10 2
REVITA Passenger 1600 21 105 10 8
REVITA Passenger 1600 21 105 8 8
REVITA Passenger 1600 21 105 10 8

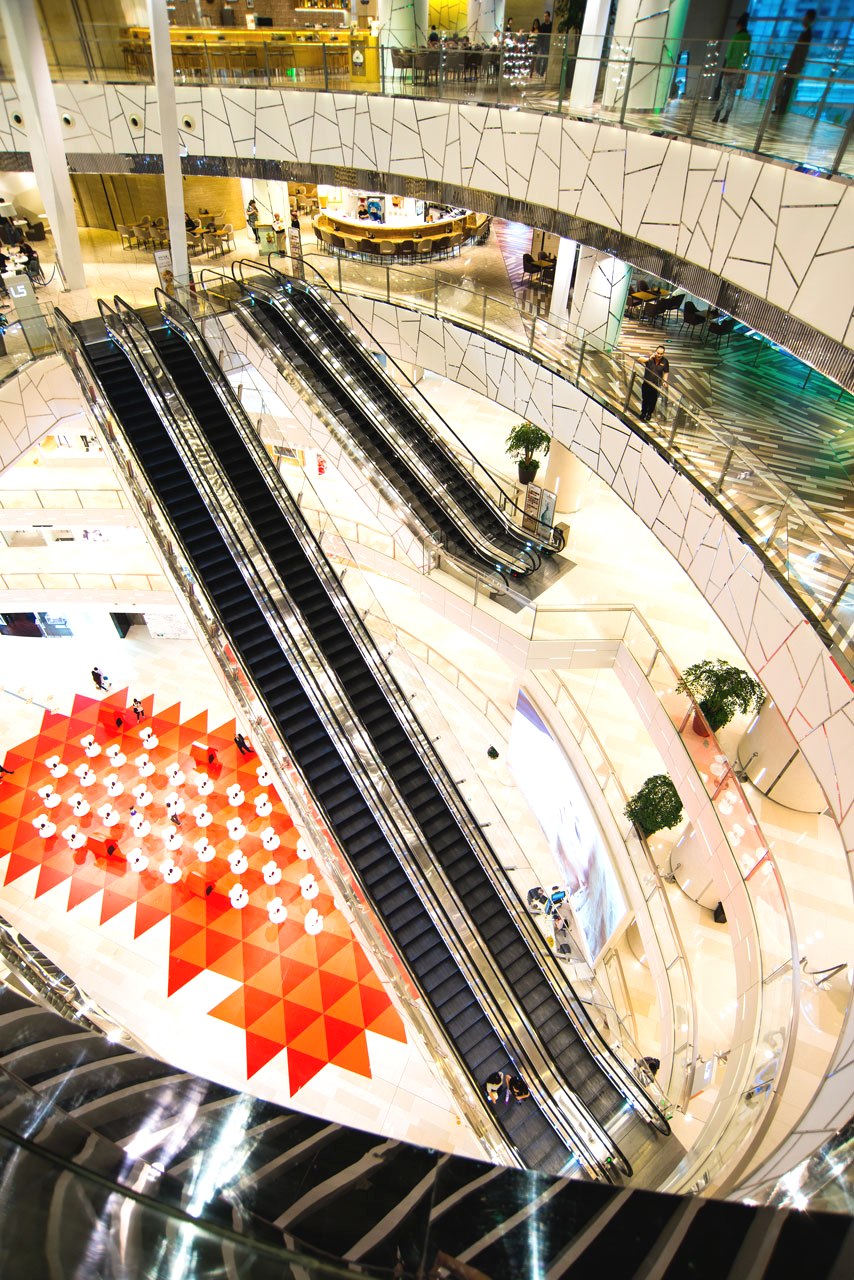

Escalator Delivery total number 52
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS8000-NX S 1000 4850 30 2
GS8000-NX S 1000 3700 30 2
GS8000-NX S 1000 4825 30 8
GS8000-NX F 1000 4825 30 2
GS8000-NX S 1000 4825 30 6
GS8000-NX F 1000 4875 30 2
GS8000-NX S 1000 6025 30 4
GS8000-NX S 1000 5300 30 8
GS8000-NX S 1000 5450 30 12
GS8000-NX F 1000 7625 30 2
GS8000-NX S 1000 10750 30 1
GS8000-NX S 1000 10900 30 1
GS8000-NX F 1000 6000 30 2
