Alvear Icon Hotel & Residences

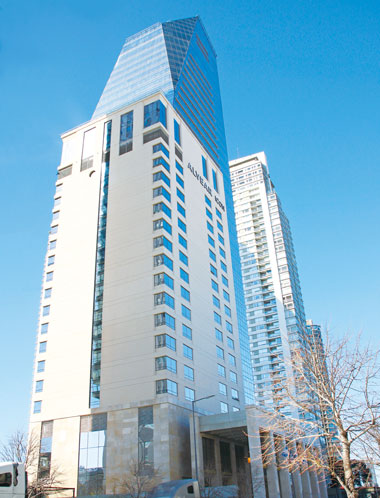

Buenos Aires, which is nicknamed the Paris of South America for its beautiful streetscapes, is a port city that faces the mouth of Río de la Plata river. Alvear Icon Hotel & Residences stands on the riverbank where residents of the city go back and forth.

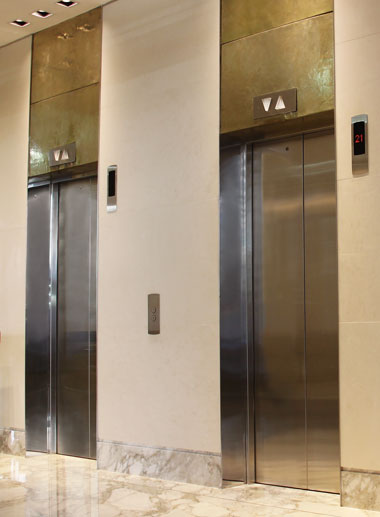

Fifteen elevators, including some high-speed models that travel at 240 meters per minute, operate there, along with two escalators. The elevators feature 3.3-meter-tall transom panels extending to the ceiling. The luxurious designs of the elevator boarding areas and cars harmonize with the ambiance of the hotel interior.

  • Elevator
  • Escalator
  • Hotel
  • South America
  • Lantern
  • Capacity:over 1150kg
  • Capacity:under 1150kg
  • Speed:over 150m/min
  • Step:1000mm
  • 2010s
Building name
Alvear Icon Hotel & Residences
Address
Buenos Aires, Argentina
Client
Alvear Hotels Chain
Design and supervision
PFZ Architects
Construction
Pellegrinet
Completion
2017

Specifications

Elevator Total units 15
Model Use Loading (kg) Capacity (person) Speed (m/min) Stop number of
floors (floor)
unit
PMGL Passenger 525 7 240 3 1
PMGL Passenger 900 12 210 37 1
PMGL Service 600 8 210 37 2
PMGL Passenger 525 7 210 16 3
PMGL Passenger 825 11 150 22 3
Hydraulic Passenger 1125 15 24 7 2
Hydraulic Passenger 825 11 24 5 1
Hydraulic Passenger 600 8 24 2 1
Hydraulic Freight 2500 - 24 4 1

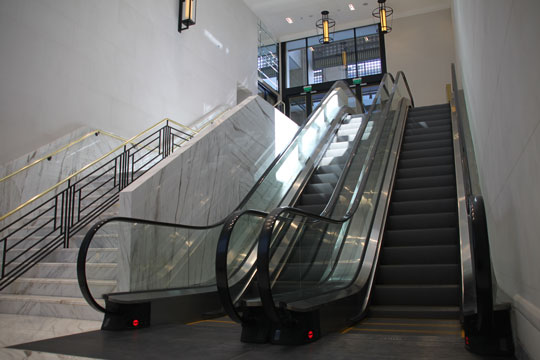

Escalator Total units 2
Model Type Step width (mm) Floor height (mm) Incline (degree) unit
GS8000NX S 1000 4350 35 2
